Brand MikroTik

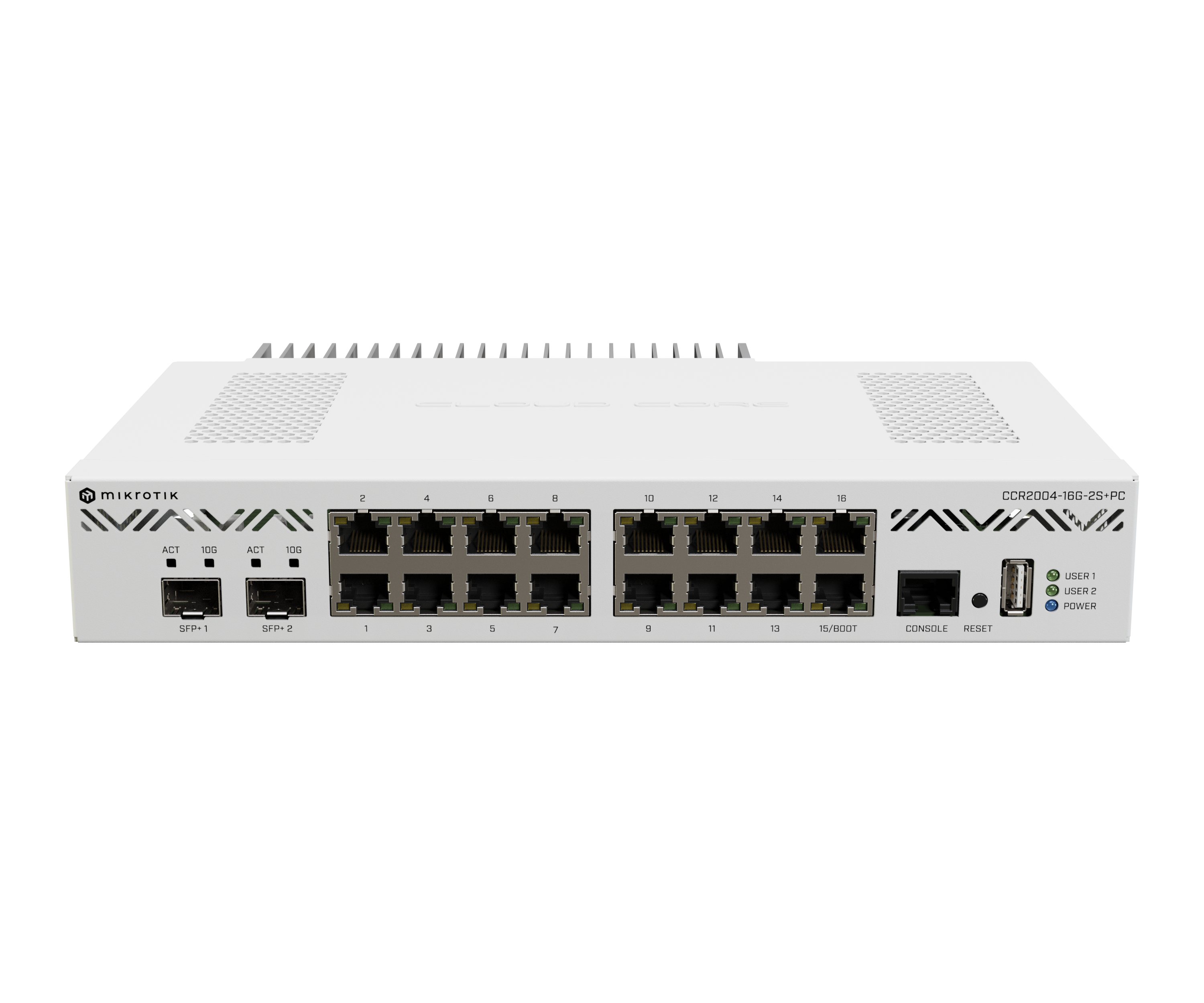

MikroTik CCR2004-16G-2S+PC 10G SFP+ Fiber Modül, LTE, SFP+ — RouterOS ile routing, firewall ve VPN ihtiyaçlarına uygun gigabit router çözümüdür.
In stock
Projects & bulk orders
For corporate projects we offer discovery, BOM and installation support for MikroTik CCR2004-16G-2S+PC 10G SFP+ Fiber Modül. Build your quote list and send it in one go.
My quote list (0) · Compare
MikroTik CCR2004-16G-2S+PC 10G SFP+ Fiber Modül, Ethernet Routerlar kategorisinde RouterOS tabanlı gigabit router ve gateway çözümüdür.
Ürün hakkında
MikroTik CCR2004-16G-2S+PC 10G SFP+ Fiber Modül, kurumsal ağ ve bulut yönetimi için Gateway segmentinde Türkiye'deki MikroTik altyapı projelerinde tercih edilen modellerdendir. MikroTik Türkiye üzerinden teknik özellikler, proje teklifi, toplu alım ve kurulum danışmanlığı talep edebilirsiniz.
Öne çıkan özellikler
- LTE
- SFP+
- 10G
- Güvenlik duvarı ve VPN
- Çok WAN yük dengeleme
- RouterOS yazılım desteği
Kullanım senaryoları
Gateway kurulumları ve yenileme projeleri; RouterOS merkezi yönetim ve güvenlik; Ölçeklenebilir kurumsal ağ altyapısı.
MikroTik CCR2004-16G-2S+PC 10G SFP+ Fiber Modül için detaylı teknik tablo, RouterOS indirmeleri ve proje teklifi MikroTik Türkiye üzerinden sunulmaktadır.
Specifications
- Product code
- CCR2004-16G-2S+PC
- Architecture
- ARM 64bit
- CPU
- AL32400
- CPU core count
- 4
- CPU nominal frequency
- 1200 MHz
- CPU Threads count
- 4
- Switch chip model
- 88E6191
- Dimensions
- 272 x 195 x 44 mm
- RouterOS license
- 6
- Operating System
- RouterOS v7
- Size of RAM
- 4 GB
- Storage size
- 128 MB
- Storage type
- NAND
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -20°C to 60°C
Powering
- Number of DC inputs
- 2 (DC jack, 2-pin terminal)
- DC jack input Voltage
- 36-57 V
- 2-pin terminal input Voltage
- 36-57 V
- Max power consumption
- 36 W
- Max power consumption without attachments
- 30 W
- Cooling type
- Passive
Ethernet
- 10/100/1000 Ethernet ports
- 16
Fiber
- SFP+ ports
- 2
Peripherals
- Serial console port
- RJ45
- Number of USB ports
- 1
Other
- CPU temperature monitor
- Yes
- PCB temperature monitor
- Yes
- Voltage Monitor
- Yes
Certification & Approvals
- Certification
- CE, EAC, ROHS
- IP
- IP 20
CCR2004-16G-2S+PC — test results
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| CCR2004-16G-2S+PC | AL32400 all port test (1200 MHz) | ||||||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 2650.7 | 32190.3 | 5715.4 | 23410.1 | 8079.9 | 4395.5 |
| Bridging | 25 bridge filter rules | 1110.3 | 13483.8 | 1113.5 | 4560.9 | 1119 | 608.7 |
| Routing | none (fast path) | 2573.6 | 31253.4 | 5061.1 | 20730.4 | 7226 | 3930.9 |
| Routing | 25 simple queues | 1084.6 | 13171.6 | 1106.1 | 4530.4 | 1079.4 | 587.2 |
| Routing | 25 ip filter rules | 668 | 8112.5 | 675.8 | 2767.9 | 683.9 | 372.1 |
CCR2004-16G-2S+PC — test results
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| CCR2004-16G-2S+PC | AL32400 IPsec throughput | ||||||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 203 | 2273.6 | 204.1 | 836 | 202.2 | 103.5 |
| 256 tunnels | AES-128-CBC + SHA1 | 232.4 | 2602.9 | 230.5 | 944.1 | 222.2 | 113.8 |
| 256 tunnels | AES-128-CBC + SHA256 | 232.4 | 2602.9 | 230.5 | 944.1 | 222.2 | 113.8 |
| 256 tunnels | AES-256-CBC + SHA1 | 232.3 | 2601.8 | 227.3 | 931 | 238.1 | 121.9 |
| 256 tunnels | AES-256-CBC + SHA256 | 232.3 | 2601.8 | 227.3 | 931 | 238.1 | 121.9 |
Latest RouterOS stable release v7.23 download files for ARM 64bit devices.
System Package
- container SHA256: 2f5e17e0fbfa2ee5…
- RouterOS SHA256: 4f07035dbac4d519…
- wifi-qcom-7.23-arm64 SHA256: 8b607a97334b3394…
- wifi-qcom-be-7.23-arm64 SHA256: d2815a1ec75639d7…
Netinstall
Use cases
- Gateway deployments and refresh projects
- RouterOS central management and security
- Scalable enterprise networking and switching
- Technical support and bulk supply
- SD-WAN and firewall integration
- Single-console site management
Technical advantages
- Güvenlik duvarı ve VPN
- Çok WAN yük dengeleme
- RouterOS yazılım desteği
- Uzaktan yönetim ve izleme
- MikroTik Türkiye proje desteği
FAQ
- MikroTik CCR2004-16G-2S+PC 10G SFP+ Fiber Modül nedir, hangi projelerde kullanılır?
- MikroTik CCR2004-16G-2S+PC 10G SFP+ Fiber Modül, LTE, SFP+ — RouterOS ile routing, firewall ve VPN ihtiyaçlarına uygun gigabit router çözümüdür.
- RouterOS lisansı MikroTik CCR2004-16G-2S+PC 10G SFP+ Fiber Modül ile birlikte mi gelir?
- MikroTik cihazların çoğu RouterOS lisansı ile birlikte gelir. CHR ve bazı lisans ürünleri için ayrı RouterOS lisans gerekebilir — ürün sayfasındaki dokümanları inceleyin.
- MikroTik CCR2004-16G-2S+PC 10G SFP+ Fiber Modül stok durumu nedir?
- Stok: In stock. Güncel teklif için teklif formu veya WhatsApp hattı üzerinden MikroTik Türkiye ile iletişime geçin.
- MikroTik CCR2004-16G-2S+PC 10G SFP+ Fiber Modül resmi model kodu (MPN) nedir?
- Resmi MikroTik model kodu: CCR2004-16G-2S+PC. Teklif ve garanti süreçlerinde bu kod kullanılır.
- MikroTik CCR2004-16G-2S+PC 10G SFP+ Fiber Modül kurulum ve proje desteği nasıl alınır?
- MikroTik Türkiye üzerinden toplu alım, ISP ve kurumsal network projeleri için teknik danışmanlık ve keşif desteği talep edebilirsiniz.
